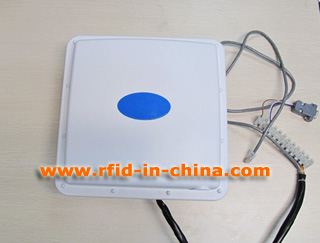

This 2.45GHz RFID active reader DL9130 is designed for inventory management. With its long read and write range, this active RFID reader is perfectly used in enterprise supply chain management to improve the efficiency of inventory tracking and management.

Working frequency: ISM 2.4GHz ~ 2.5GHz

Identify direction: Directional Identification

Antenna: 15dBi Built-in antenna

RF Power Range: -20 dBm ~ 0 dBm (set by software)

Receiving Sensitivity: -90 dBm

Modulation: GFSK

Read Mode:

1) Automatic identifying within effective area (Auto mode)

2) Reading after external trigger (Trigger mode)

3) Reading under software command (Master-slave mode)

Anti-collision: Read up to 500 pieces of tags simultaneously

Read distance: 0 ~ 200 m adjustable

Buffer Capacity: 1000 tags data

Write distance: 0 ~ 100 m adjustable (Reader with RSSI function)

Working Status Indication: Buzzer

Communication Speed: 1000kbps

1 triggering input, 2 Relay output, CAN, RSSI

Data Port interface: RS232 Port, RS485 Port, Ethernet, Weigand26/34/42/50

Power supply: DC+5V, 1A

Product size: 225 mm*225 mm*100 mm

Packing size: 450 mm*300 mm*140 mm

Gross weight: 2800 g

Net weight: 1850 g

Accessories: 5V/1A adapter, power cable, RS-232 cable, Ethernet cable, Mounting bracket

Working temperature: -20 degree ~ 70 degree

Storage temperature: -40 degree ~ 85 degree
